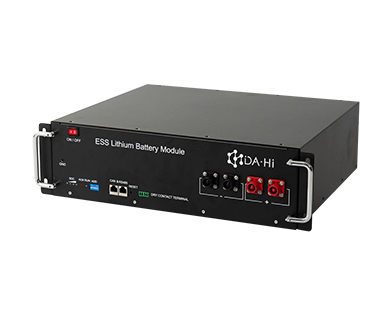

ESS is able to store clean energy generated by solar PV with lithium battery, which allows maximum self-consumption. Its soft-toned appearance and less occupied area merges perfectly with home environment.
- Key Features
- Parameters
◆ Great flexibility--Diverse combinations meet optionally your needs.
◆ Professional consultancy--Provide deep technical support for your project.
◆ Guaranteed consistency--Long-term premium battery cells supplying.
◆ Proven safety--Safety-proven LFP battery cells.
◆ Easy to connect—Simple and quick installations ready-to-use.
Basic Parameters | 4850LFP |
Nominal Voltage (V) | 48 |
Nominal Capacity (Wh) | 2400 |
Usable Capacity (Wh) | 2200 |
Dimension (mm) | 391*486*131 |
Weight (Kg) | 24 |
Discharge Voltage (V) | 45 ~ 53.5 |
| Charge Voltage (V) | 52.5 ~ 53.5 |
Recommend Charge/Discharge Current(A) | 25 |
Charge/Discharge Current (A) | 50(Max) |
Communication Port | RS485, CAN |
Single string quantity(PCS) | 16 |
Working Temperature | 0℃~55℃ Charge -20℃~55℃ Discharg |
Shelf Temperature | -20℃~60℃ |
Protective class | IP20 |
Cooling type | Natural Cooling |
Humidity | 5% ~ 85% |
Certification | ROHS/TUV/CE/UN38.3 |
Design life | 10+ Years (25℃/77℉) |
Cycle Life | >6,000 25℃ |
Reference to standards | IEC62619, IEC62040, IEC62477-1, VDE2510-50, IEC61000-6-2, IEC61000-3, UN38.3 |
